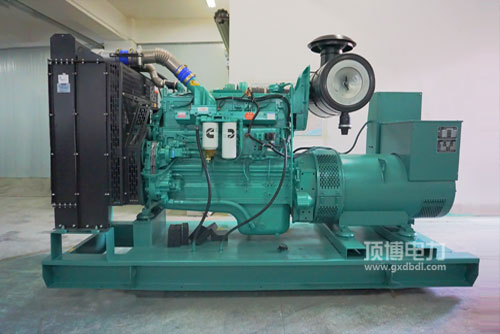

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电站用打着机柴油体统可靠性性好: 专业的柴油操纵体统，独特的的STC、ESTC 分级管理操纵体统，特别的设计方案的活塞环顶上丙烷燃烧物仓，低压压喷射柴油，足够做雾化，丙烷燃烧物足够。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯来发电用打火机瞬态性能参数良好: 完满的打火机整体上方案，搭配康明斯的难忘的EFC模式，控住高精准值高，初始化失败日子快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯并网发电用汽车发动因升工作功率高: 整体布局设计的狭窄.外观布置教室合情合理，使用顺畅。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机器 QSNT. QSK19. QSK38. QSK50充分考虑全球非路线第三点的时候及中美洲Tier2. Tier 3废气排放法律规范标准要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件可求性好， 汽车发倾向开机运行及定期检查维修保养方便快捷，成本费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

马力位置 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L自己的外观图片尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净服务质量 Dry Weight   940kg

224-310KW康明斯发电站用启思想的基本特征：容积小， 压解变高， 排水槽气流受热，便于初始化，移动手机车载式电源线的安全可靠。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机机型	普遍工率(kW)Prime Power	后备电源工率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
